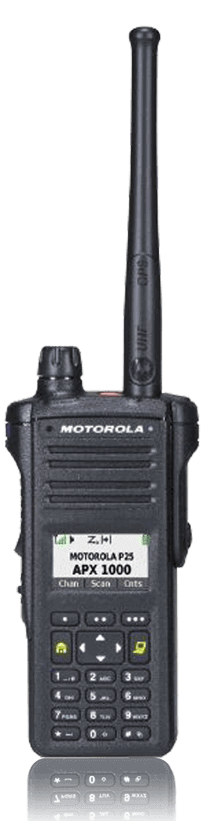

Motorola APX 1000 Portable Radio
P25 Operation | Compact Form Factor | Key Features | Durable Design
Reliability Meets P25 Portability
If you are racing to respond to an electrical outage or monitor a highway construction build, you need a radio that keeps you connected, instantly and continuously no matter the situation, background noise, weather or duration. You expect a reliable radio where every word is heard and every message understood when it counts most.
Public safety, utilities and government service users require a P25 radio that can stand up to the toughest tasks while keeping them connected to surrounding agencies and first responders. The APX 1000 is engineered to give you the capabilities you need at the budget you can afford. It combines uncompromising durability, simplified controls and excellent audio quality in a compact P25 TDMA capable portable radio.
Everything You Want In A Radio, For Less
With the APX 1000, you pay for only the functionality you need at the level you can afford without giving up the exceptional quality and reliability you expect from APX. The APX 1000 provides you with a radio that meets and fits your budget needs.
Motorola APX 1000 Features and Benefits
Smallest P25 Phase 2 TDMA-capable radio available.
Simple to navigate and use.
High-contrast color display is easy to read in all kinds of light.
The multi-function knob is designed for ease of use by combining volume, channel and ON/OFF settings in one.
Dual microphone noise suppression technology locates the talker and cancels out any background noise.
Equipped with the latest AMBE +2 digital voice vocoder.
Three radio models
Three radio models allow the user to select the device that best suits the end users' environment.
Uses color to notify you of the radio mode, potential emergencies or specific events. Color alerts provide information at a glance.
Adjust audio levels, lighting and tones through user selected or automated options. Whether on surveillance or working in bright sunlight, you can customize settings as needed.
Offers a freeform or canned messaging solution so you can efficiently and discreetly send and receive messages.
Audible, pre-recorded voice file provides a description of the selected channel or zone.
Motorola’s POP25 solution allows subscriber radios to be programmed over the air via the ASTRO 25 systems while remaining in the field.
P25 Phase 2 - TDMA
Twice the voice capacity, allowing additional users on the system without the need for additional frequencies or infrastructure.
Motorola APX 1000 Models
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad, 3 Soft Keys
H84UCD9PW5AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 512 Channels
H84KDD9PW5AN VHF (136-174 MHz), 1-5 Watts, 512 Channels
H84QDD9PW5AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H84SDD9PW5AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad, 3 Soft Keys, 4 Direction Navigation Key, Home and Data Buttons.
H84UCF9PW6AN 700/800 MHz (763-870 MHz), 1-2.5 Watts, 512 Channels
H84KDF9PW6AN VHF (136-174 MHz), 1-5 Watts, 512 Channels
H84QDF9PW6AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H84SDF9PW6AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
H84WCF9PW6AN 900 MHz (896-940 MHz), 1-2.5 Watts, 512 Channels
Full Bitmap Color LCD Display, 3 Lines of Text X 14 Characters, 1 Line of Icons, 1 Menu Line X 3 Menus, White Backlight. Backlight Keypad, 3 Soft Keys, 4 Direction Navigation Key, 4x3 Keypad, Home and Data Buttons.
H84UCH9PW7AN 700/800 MHz (764-870 MHz), 1-2.5 Watts, 512 Channels
H84KDH9PW7AN VHF (136-174 MHz), 1-5 Watts, 512 Channels
H84QDH9PW7AN UHF Range 1 (380-470 MHz), 1-5 Watts, 512 Channels
H84SDH9PW7AN UHF Range 2 (450-520 MHz), 1-5 Watts, 512 Channels
Motorola APX 1000 Accessories
Safety Doesn't Stop With The Radio
Extend the power and reliability of your radio with the only complete line of accessories designed, tested and certified for optimal performance with APX portables. Whether it's our industry-leading Remote Speaker Microphone with noise-canceling technology for loud, clear communications or a Mission Critical Wireless Bluetooth earpiece for secure, discreet conversations, our accessories are so comprehensive and flexible, you can trust them to work overtime with your APX radio.
IMPRES™ Smart Audio Accessories
Be clearly heard the first time and eliminate repeating yourself. Whether you need to talk loudly or quietly, into or away from the accessory, IMPRES Audio lowers the loud talker level and raises the soft talker level automatically so listeners do not have to adjust the volume depending on who is talking.
IMPRES Smart Energy System
Get the most out of every battery by eliminating the surprise of "low battery alerts." IMPRES chargers tell you exactly how much capacity is in an IMPRES battery before you attach it to your radio and exactly when an IMPRES battery has reached the end of service life.
Mission Critical Wireless Bluetooth® Accessories
The APX Mission Critical Wireless portfolio is skillfully engineered to give first responders enhanced security, quick pairing and fast PTT. Our earpieces provide exceptional audio clarity and volume so messages come through loud and clear in noisy settings. The discreet earbud, which looks like a consumer device, offers private listening in noisier environments. Durable yet lightweight, these wireless accessories fit snugly and comfortably for long shifts.
